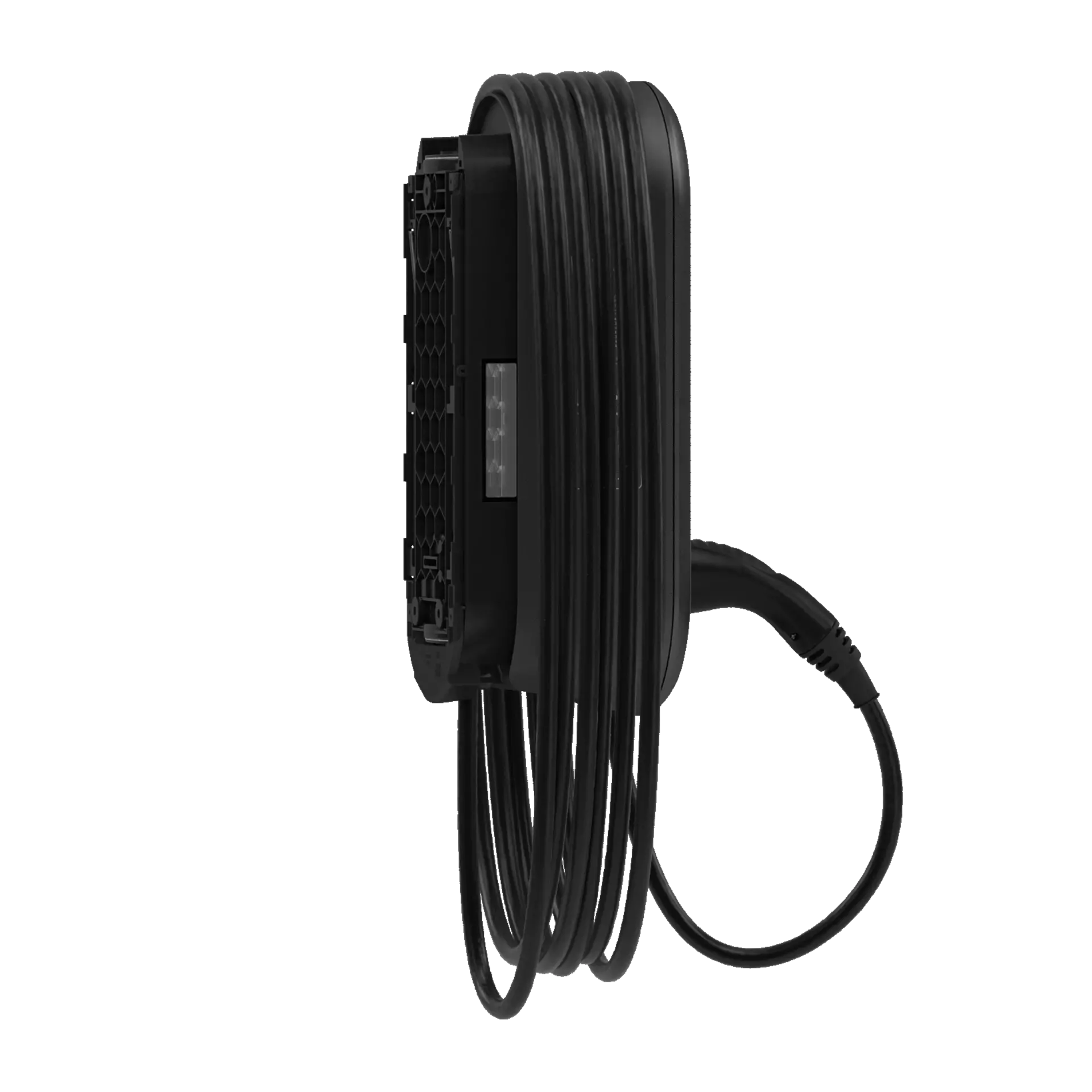

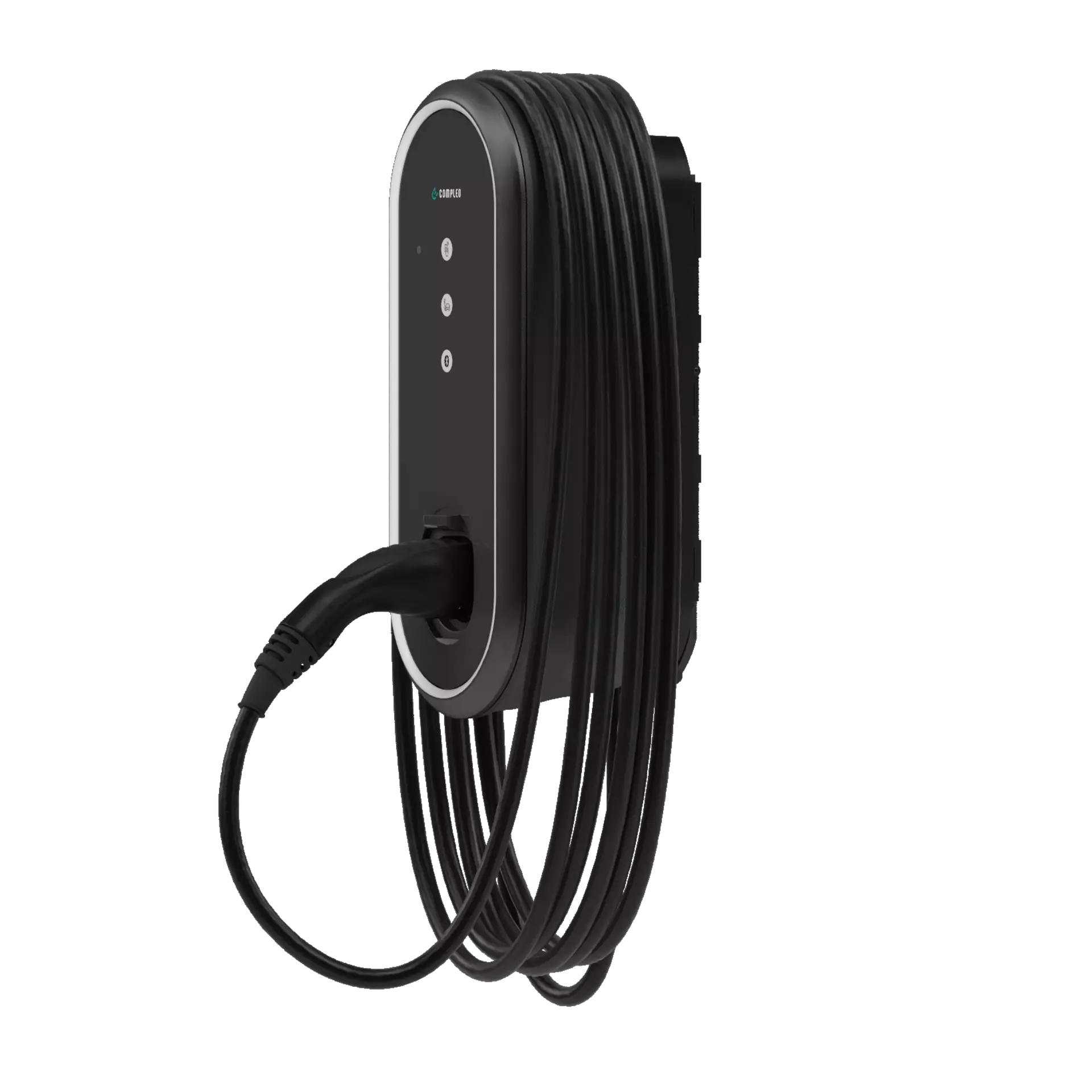

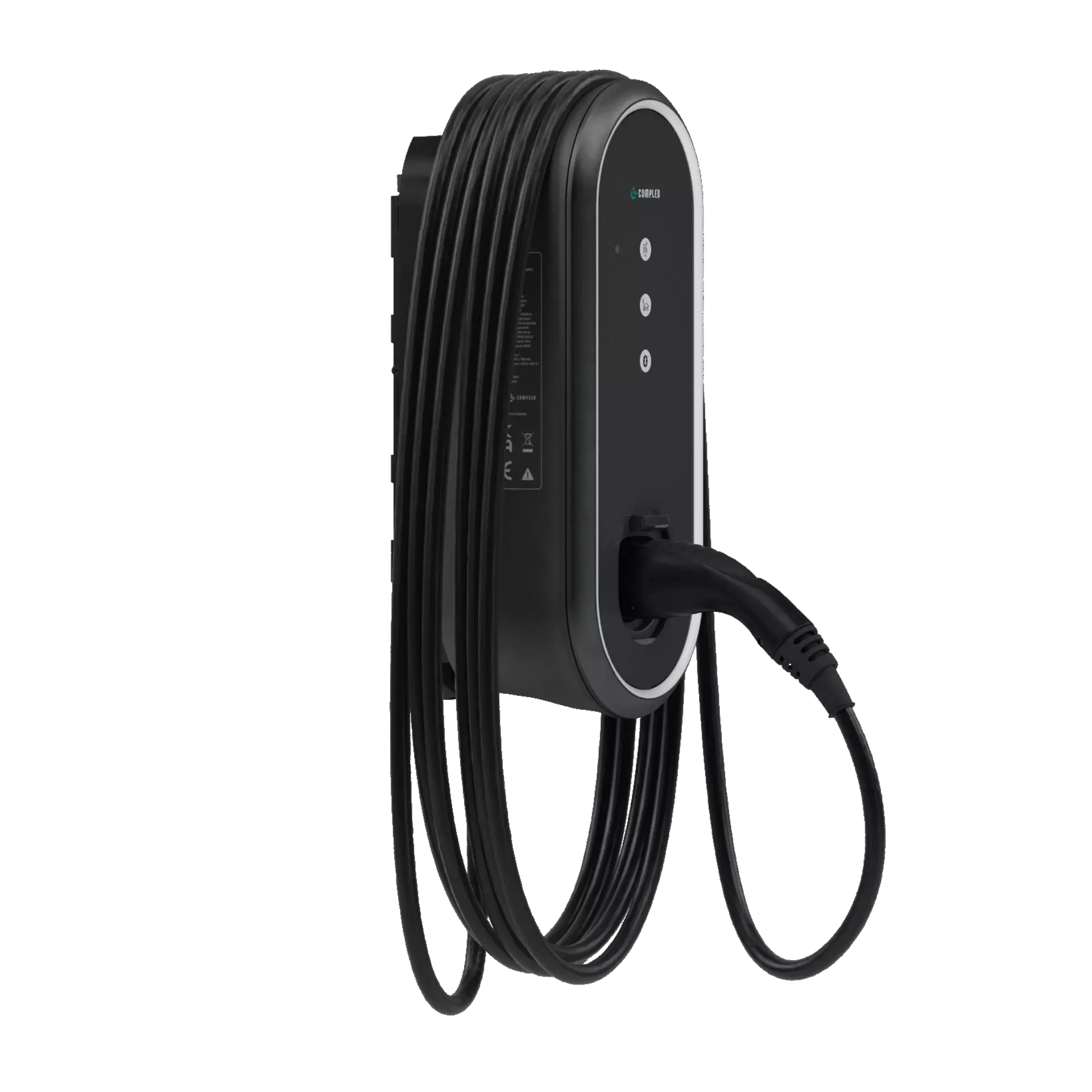

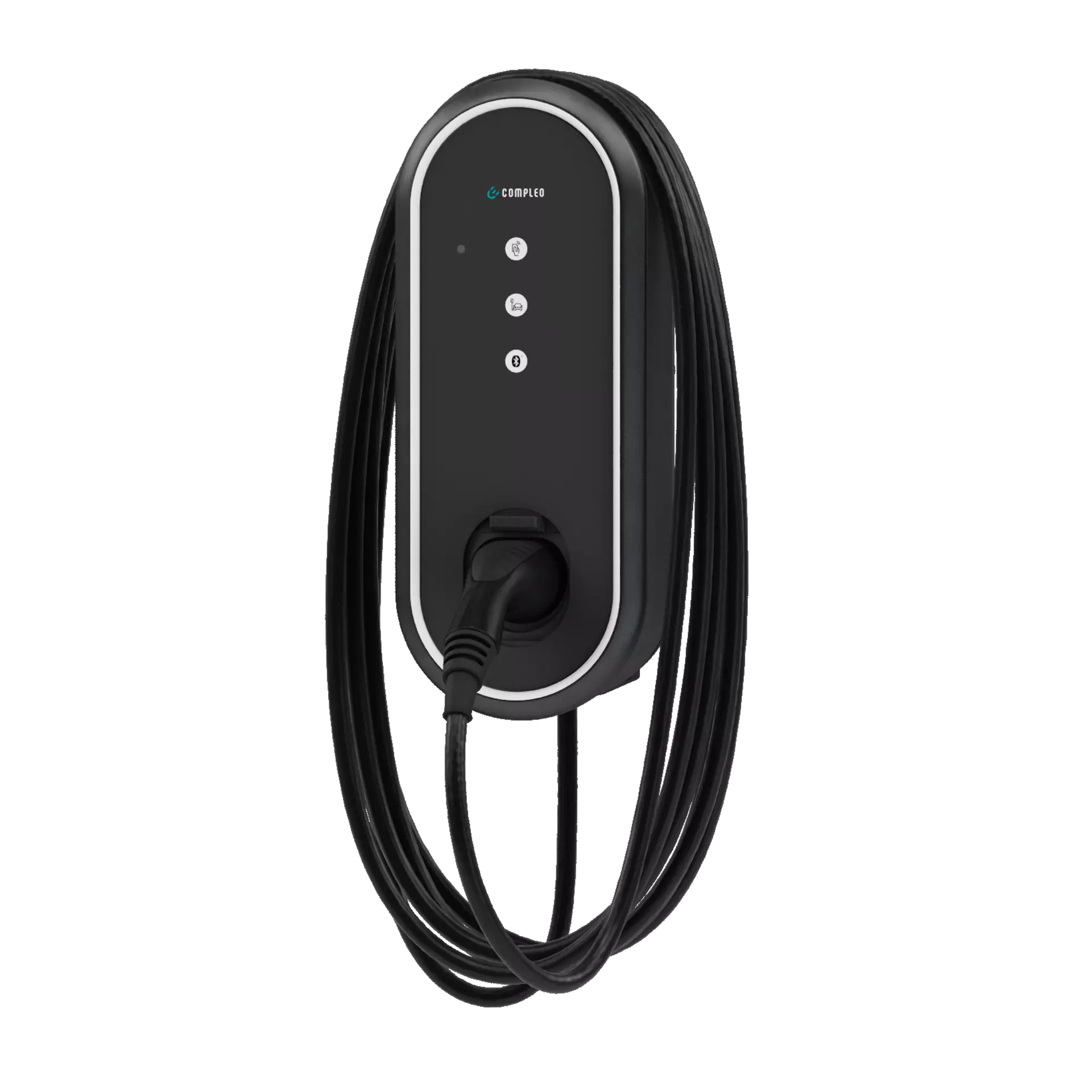

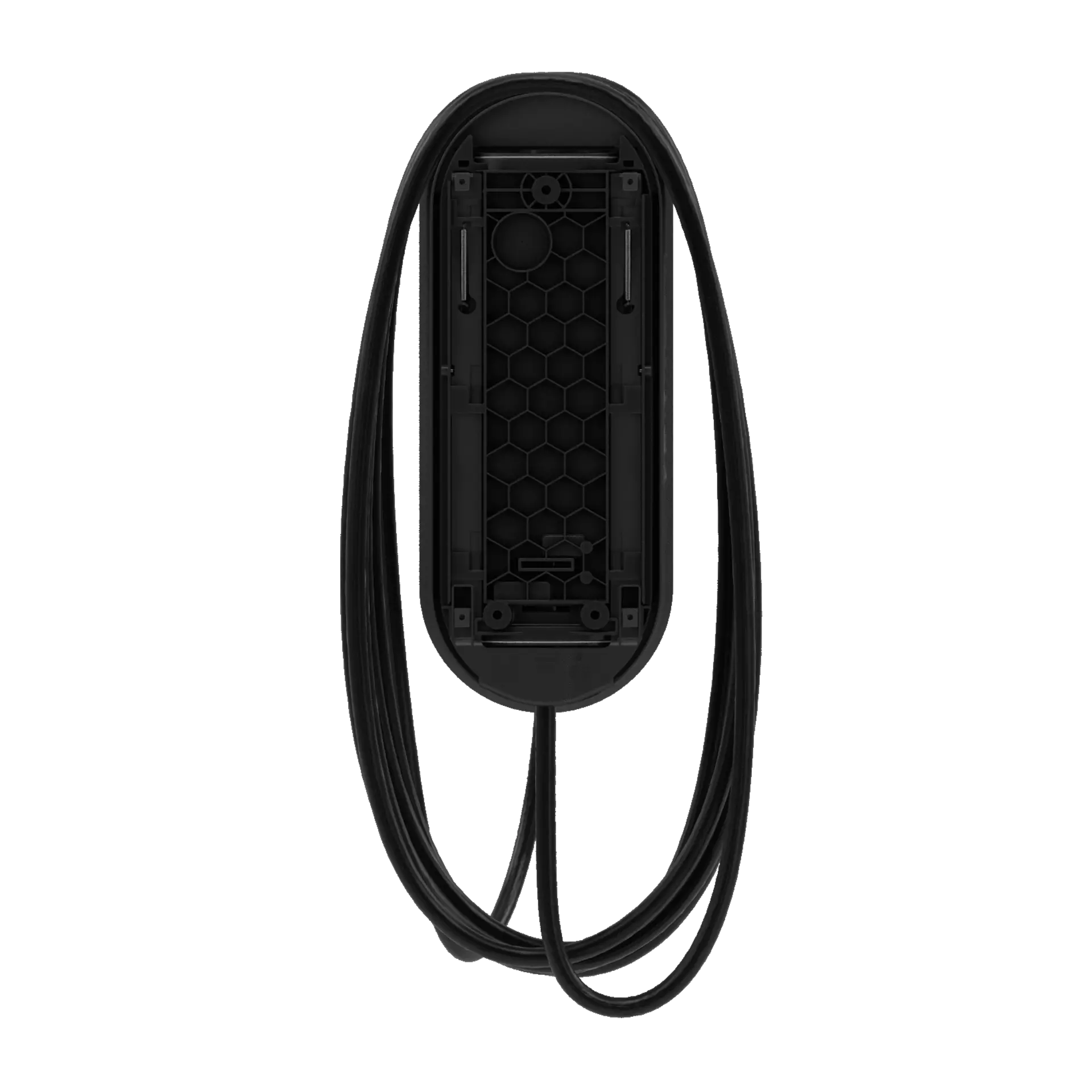

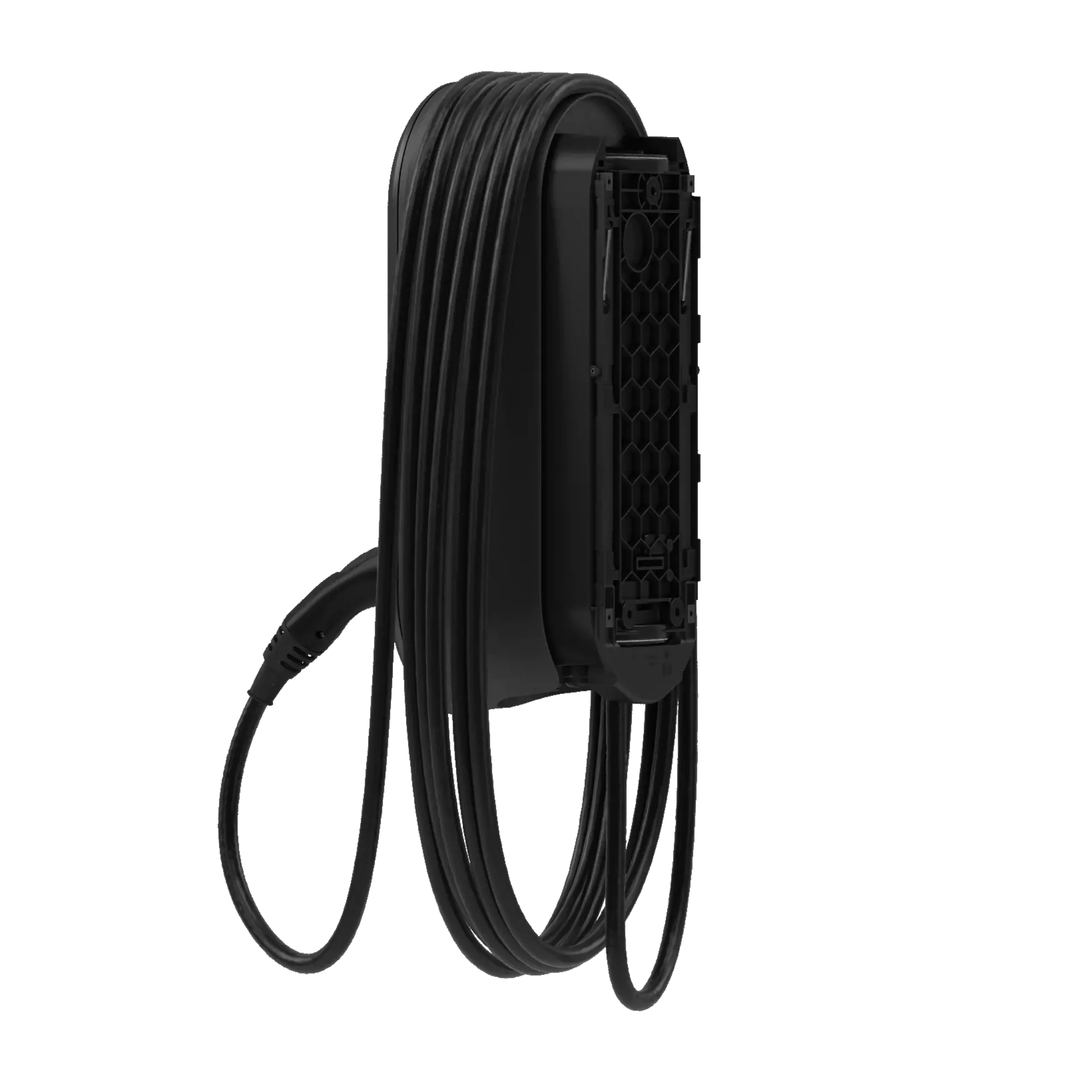

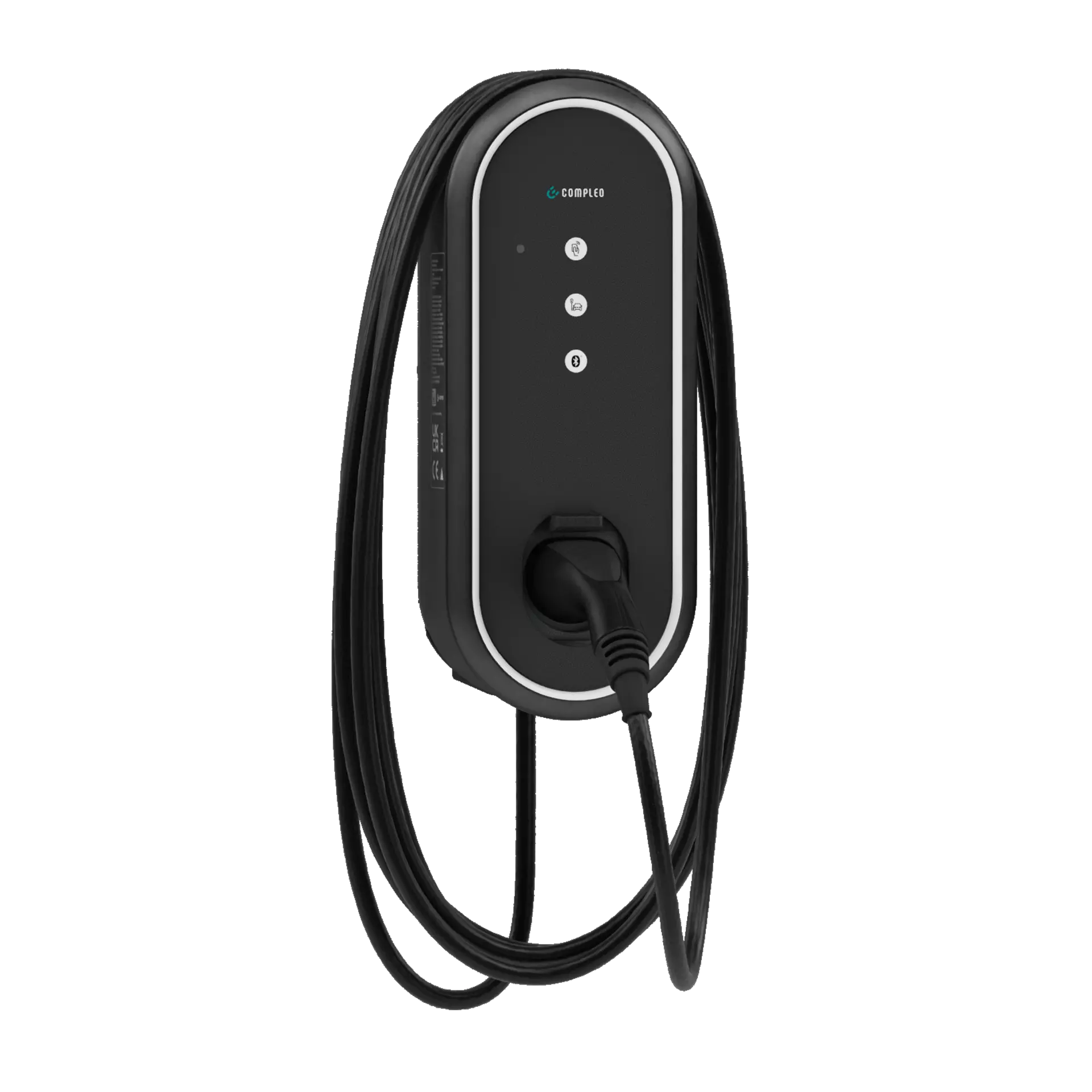

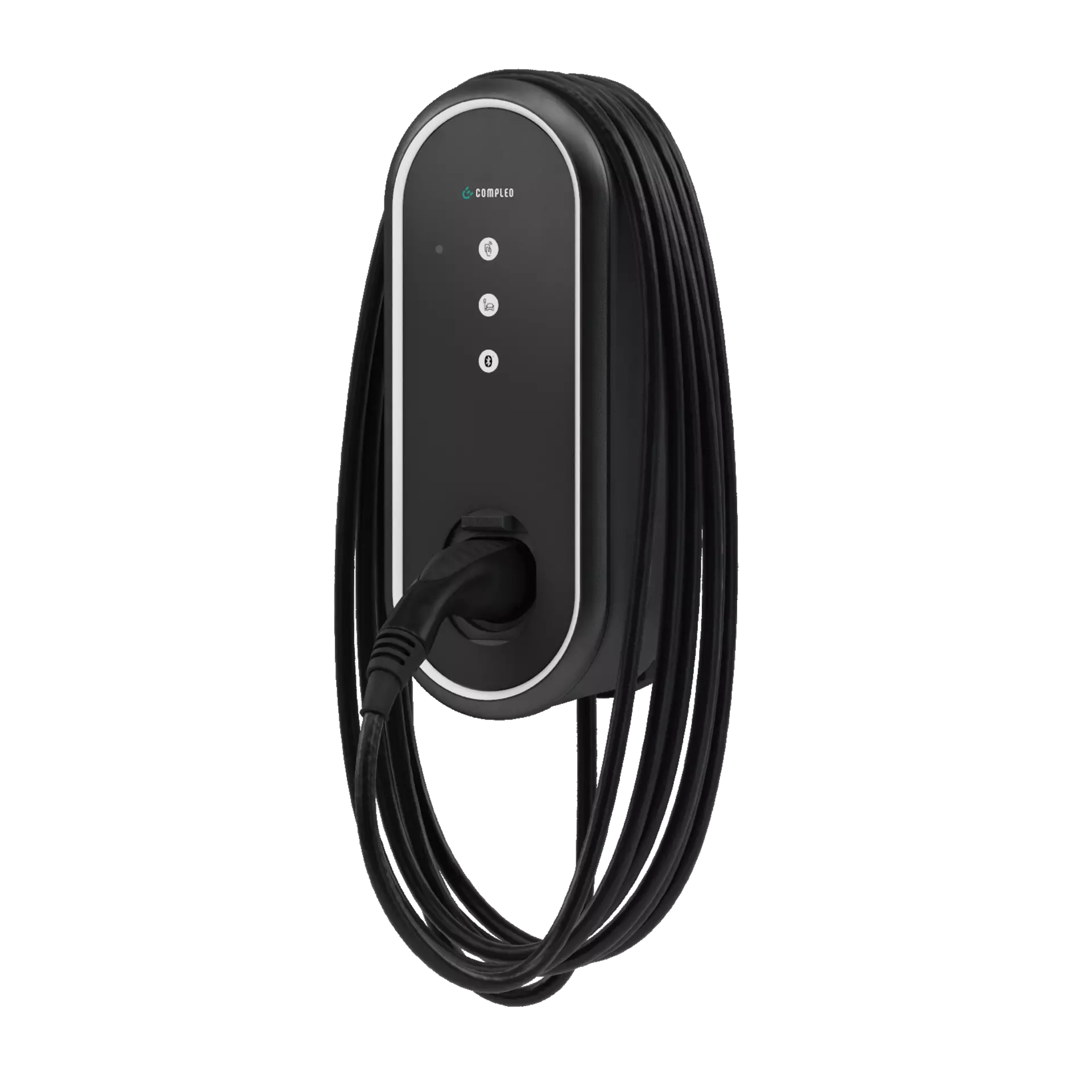

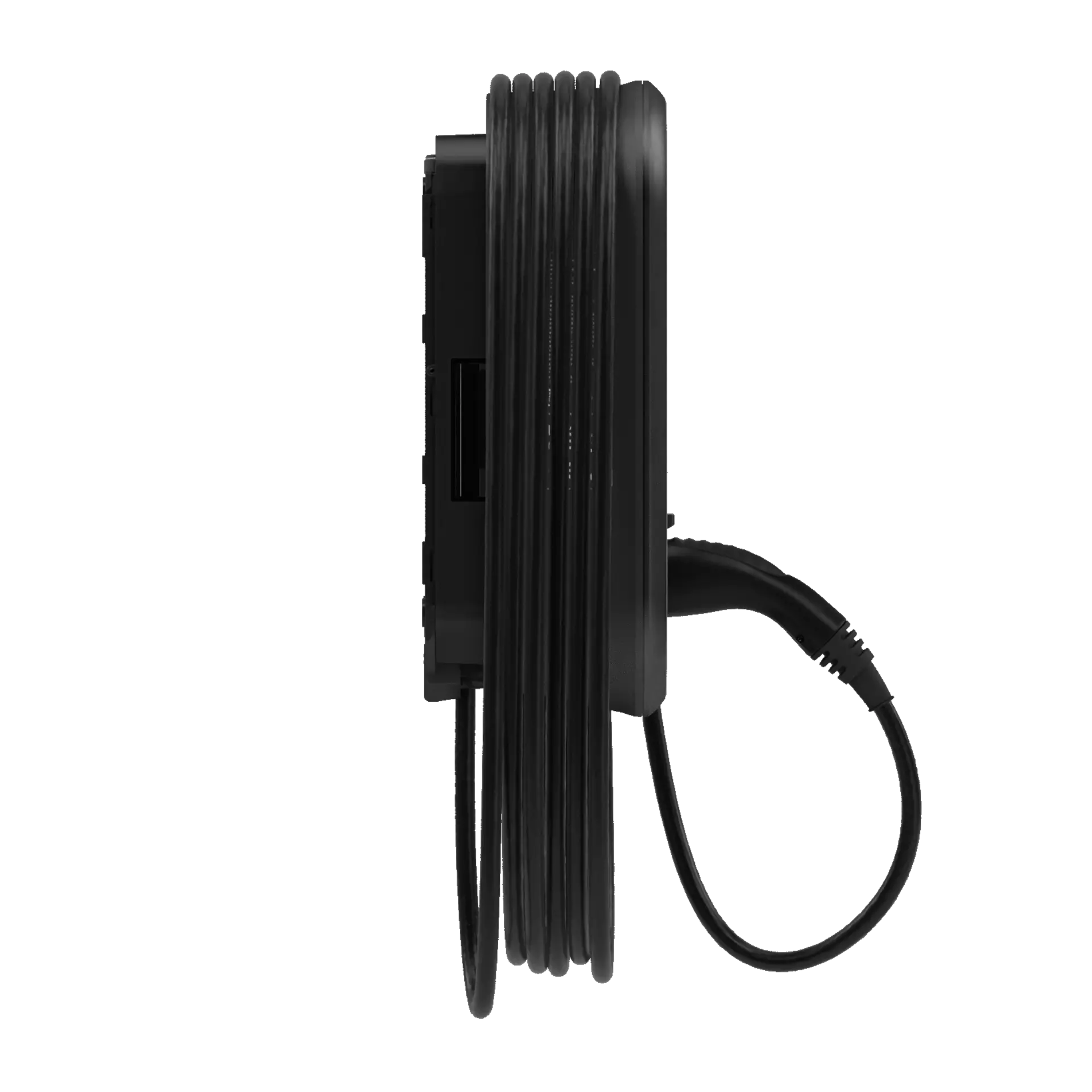

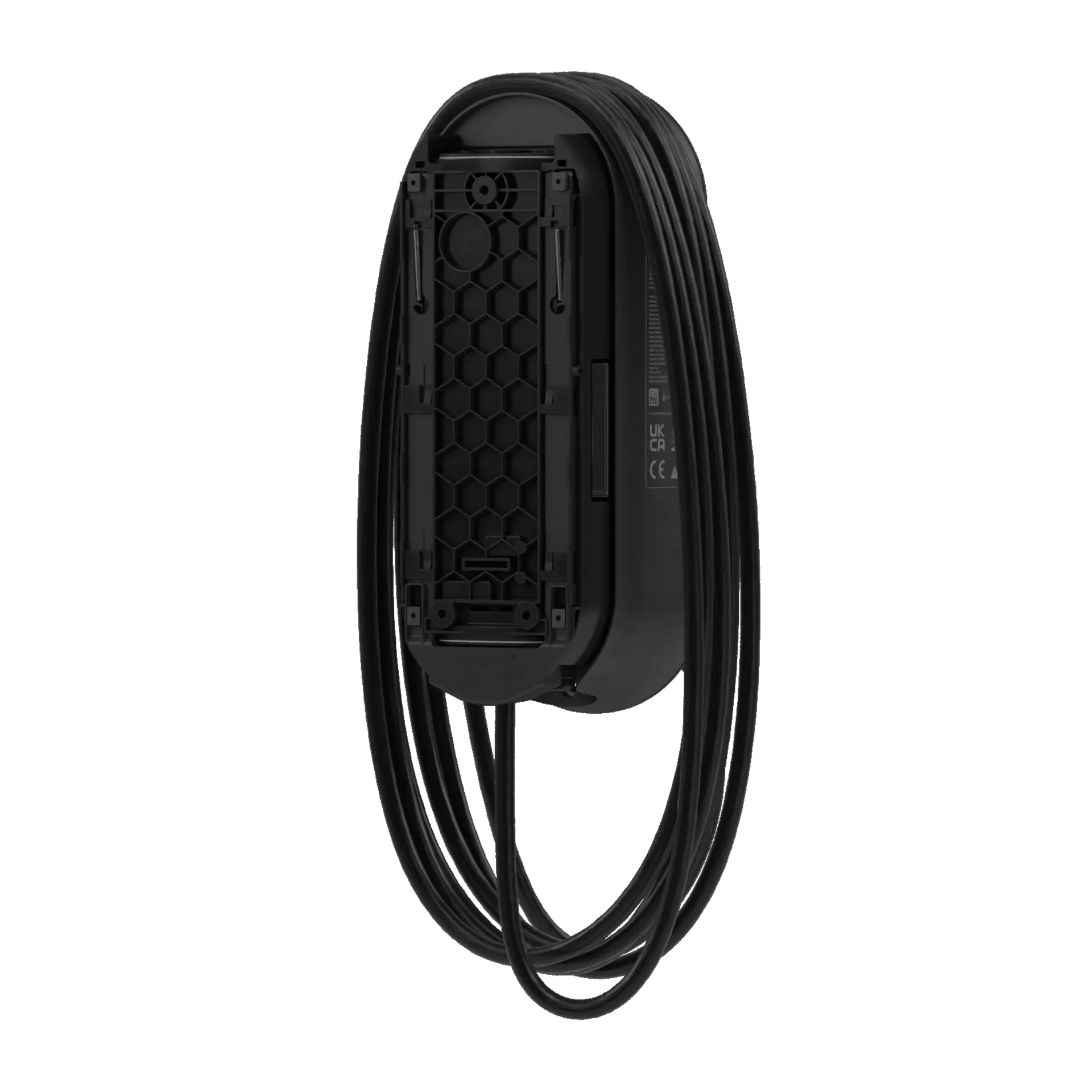

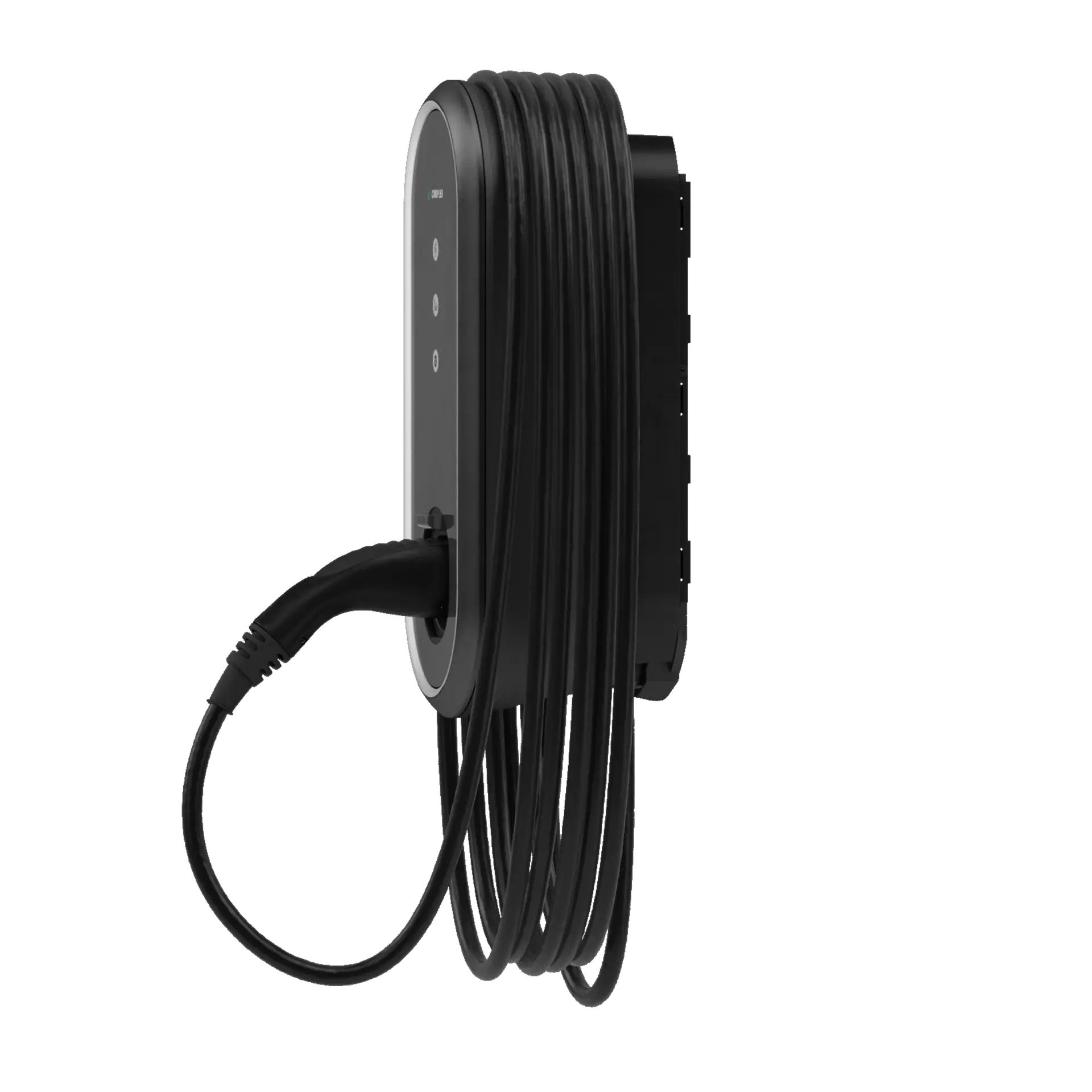

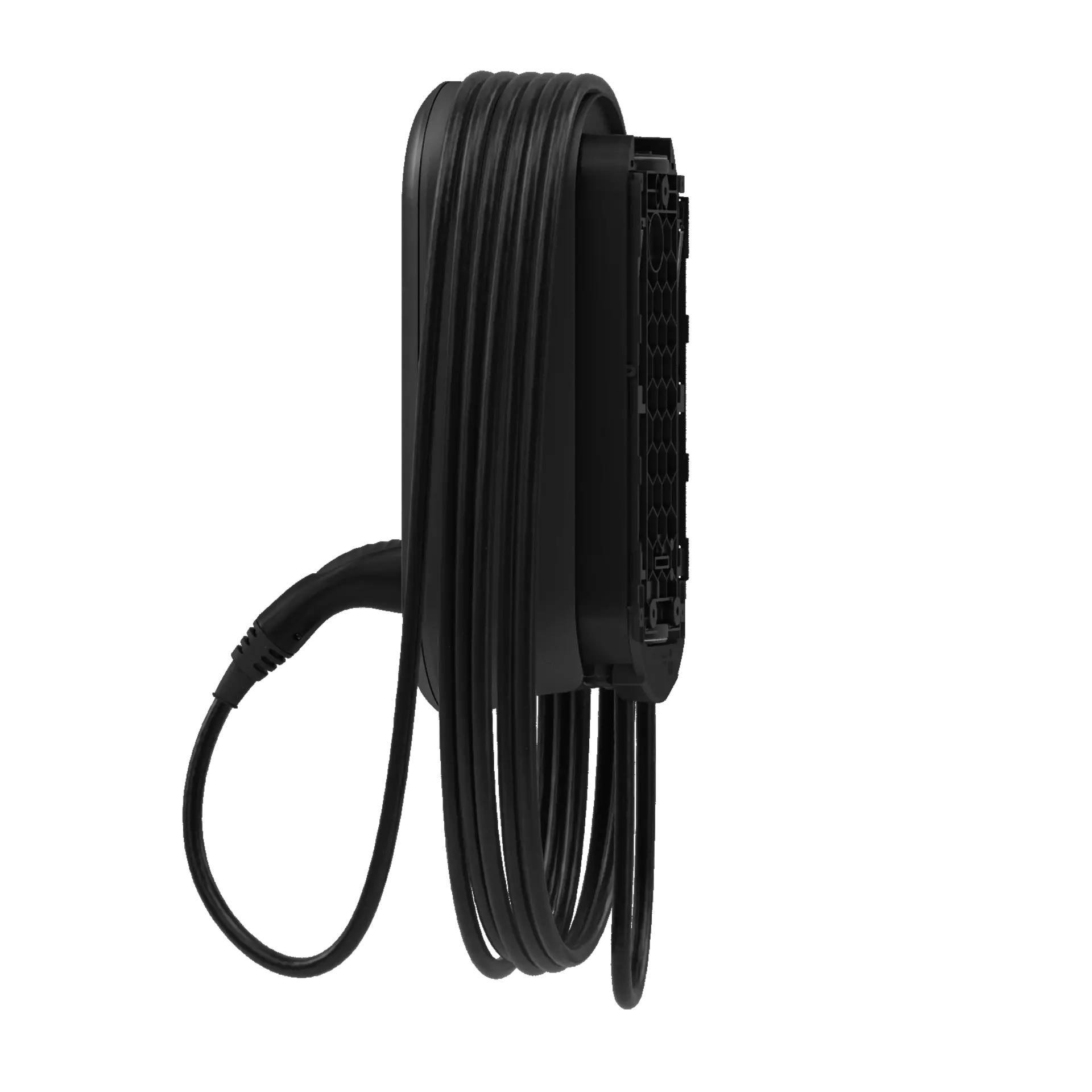

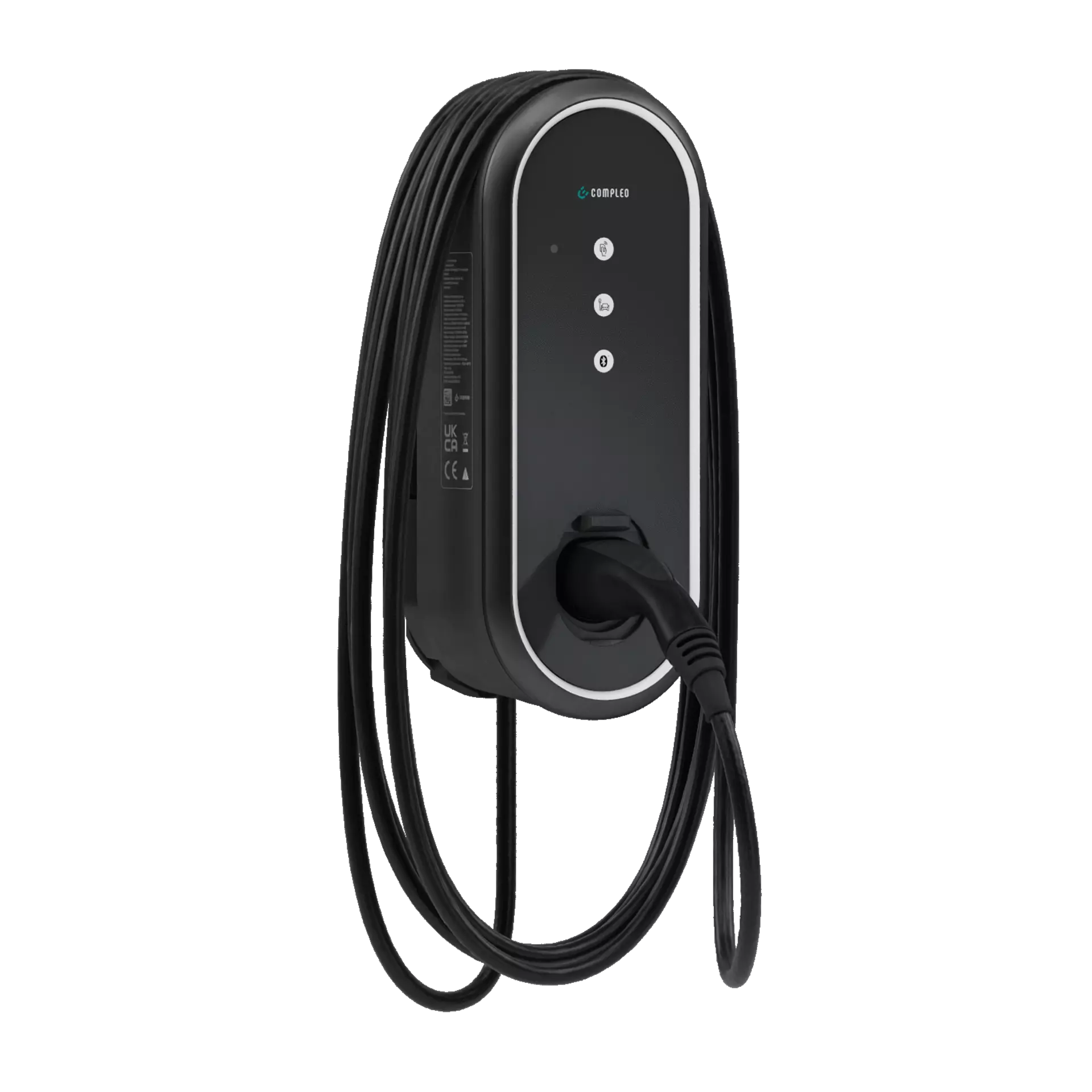

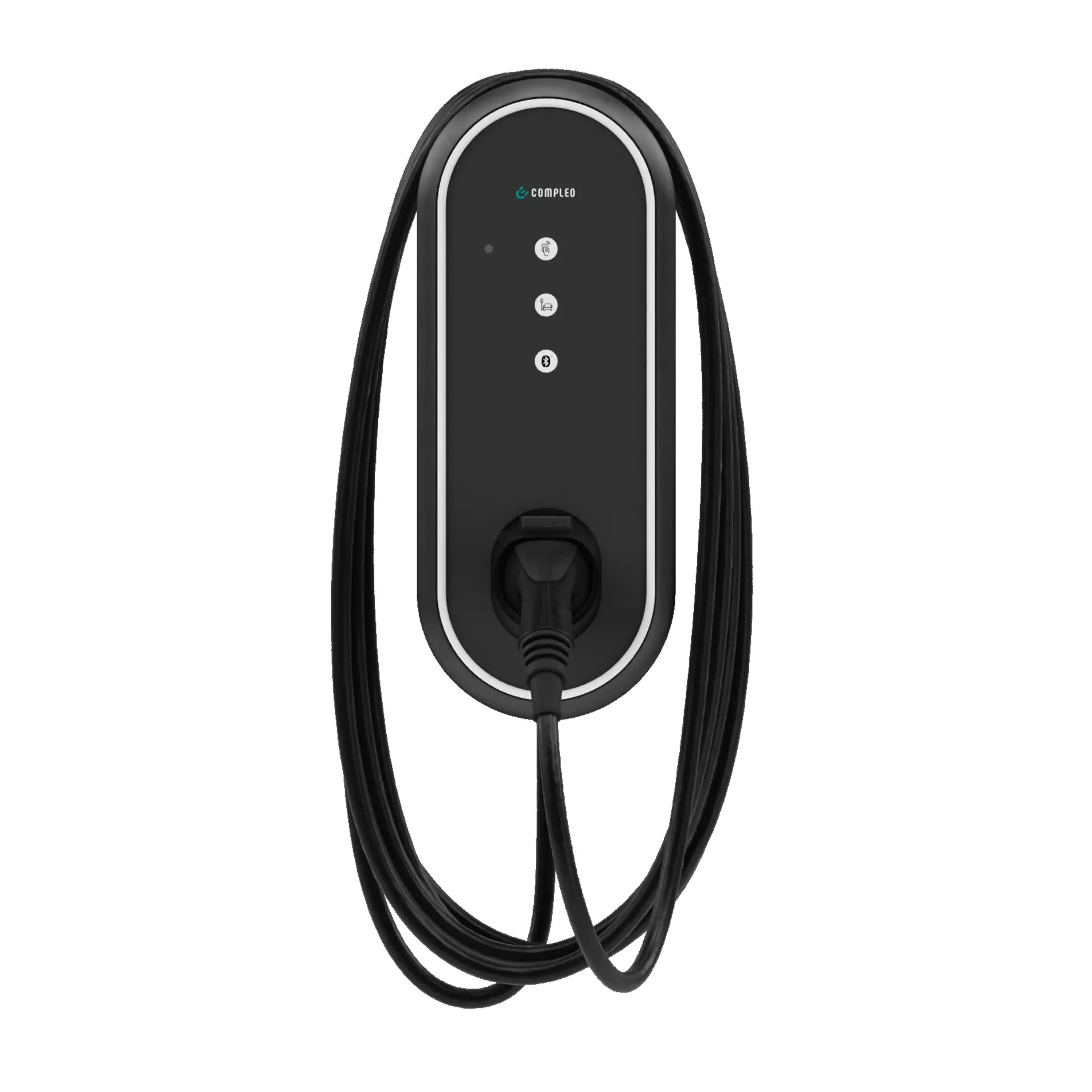

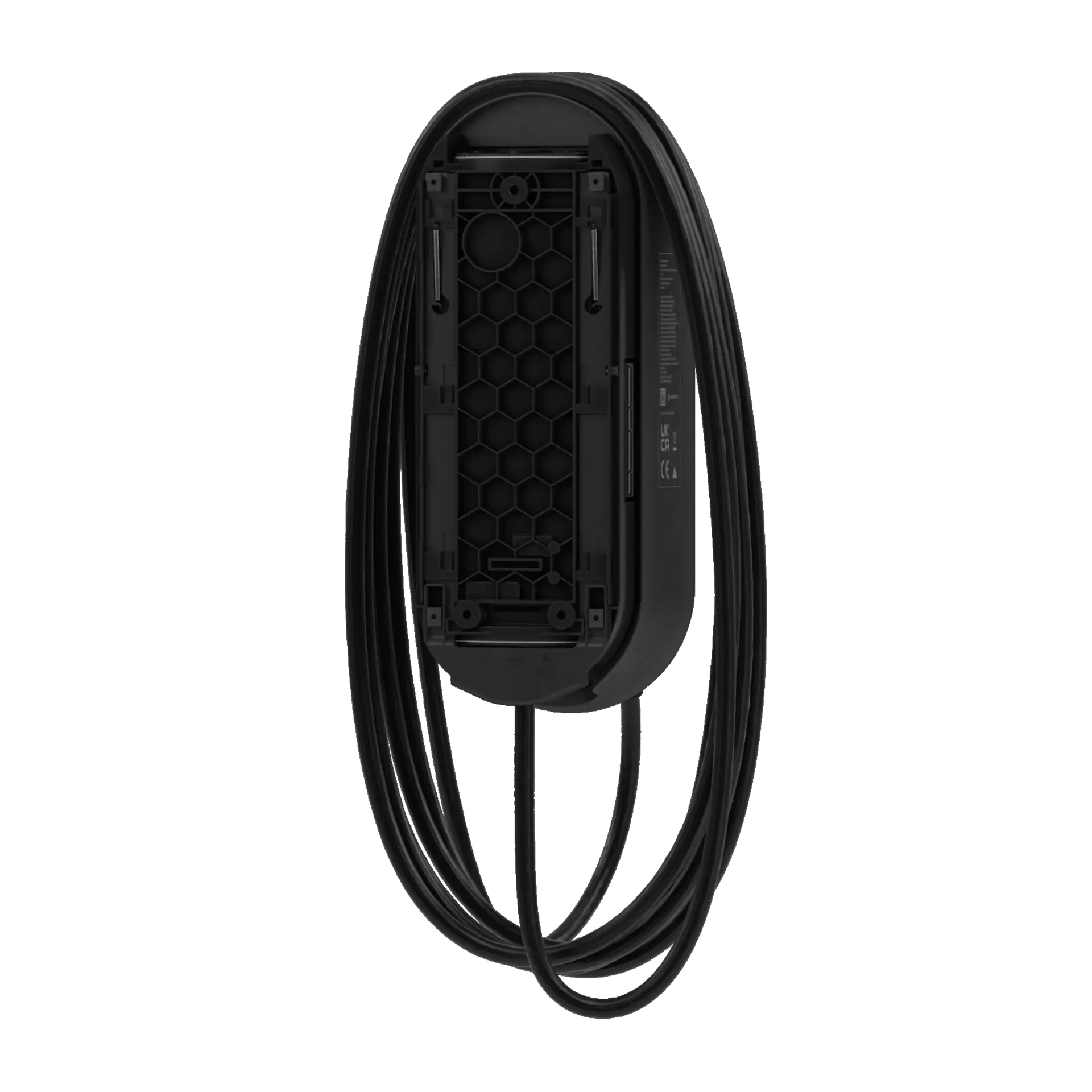

Product name

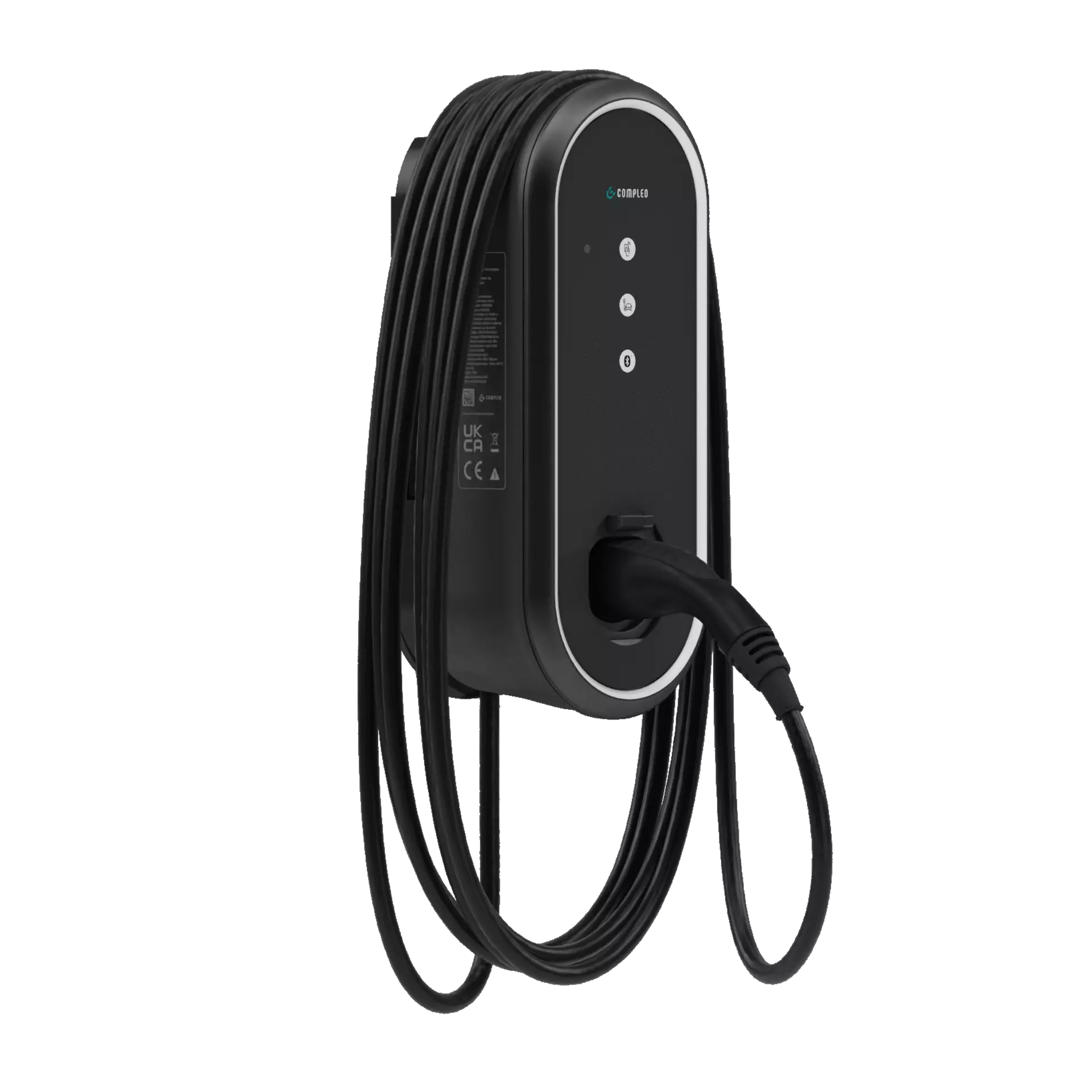

eBOX professional
Number of charging points
1
Charging connector
Type 2 socket,
optional type 2 charging lead (6.5 m)
Authorisation
Free charging, smartphone app (eCHARGE+ or third-party), RFID, Plug & Charge (ISO 15118)
User Interface
2 LED displays for authorisation and vehicle connection status,
1 LED button for Bluetooth connection
Maximum charging output per charge point
22 kW: Type 2 socket;
22 kW: type 2 charging lead;
configurable
Nominal voltage, number of phases, nominal frequency
230 - 400 V; 1 - 3; 50 Hz
Maximum input current
32 A per phase, configurable
Protection
DC residual current detection 6 mA
IT backend connection
OCPP 1.6 JSON
Meter / German calibration law
optional: MID-compliant smart meter (included in calibration-law compliant version)
Mounting type

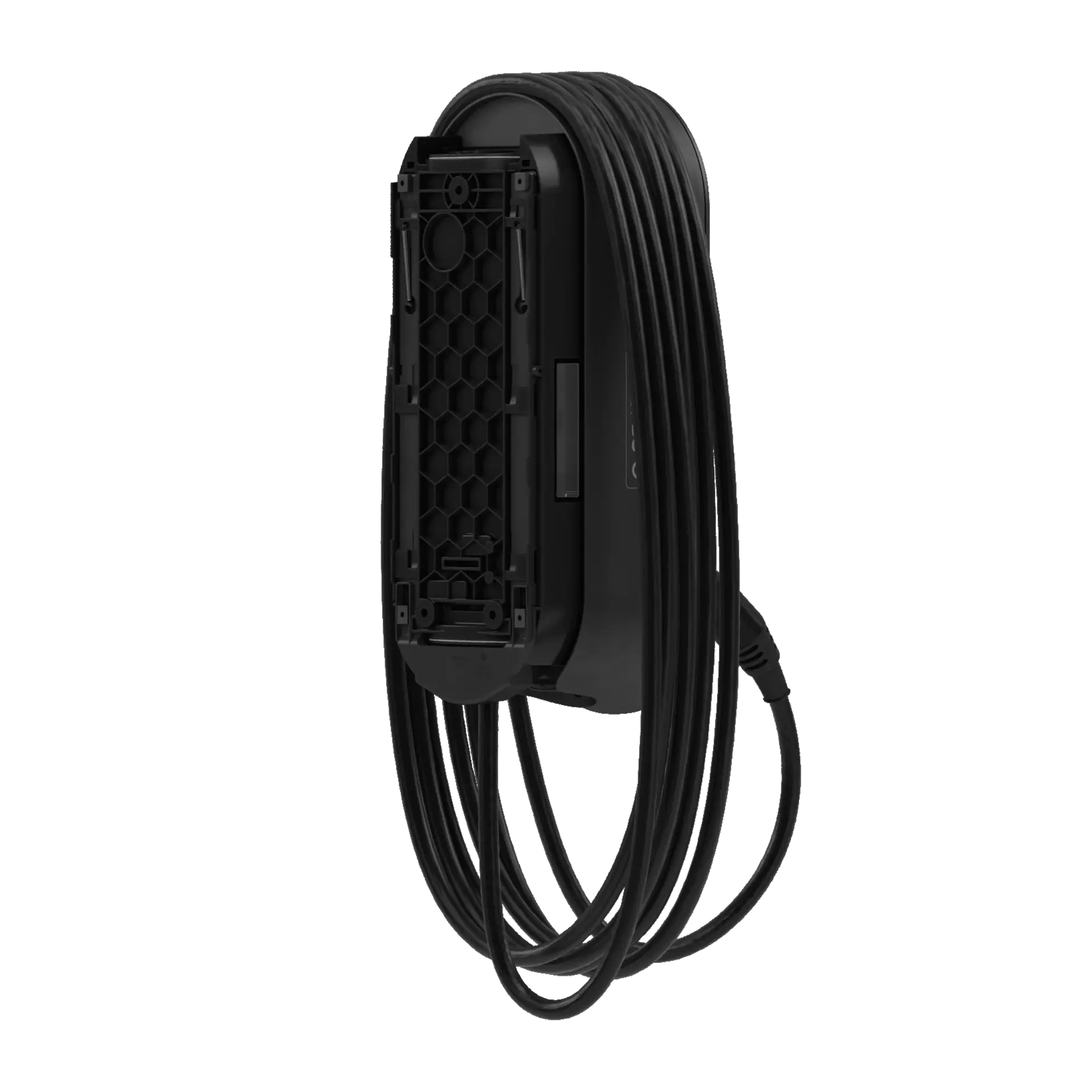

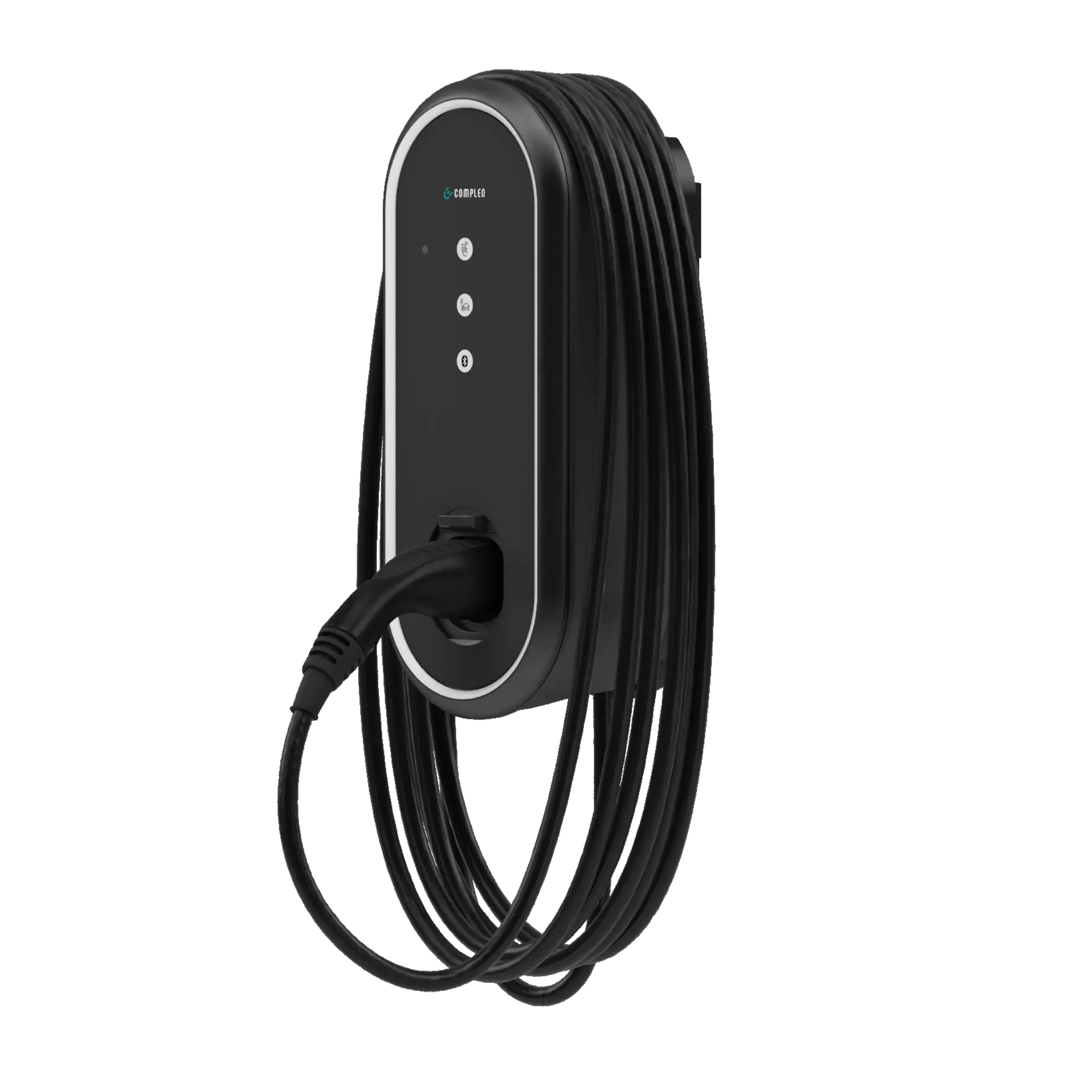

Wall mounted (wm);

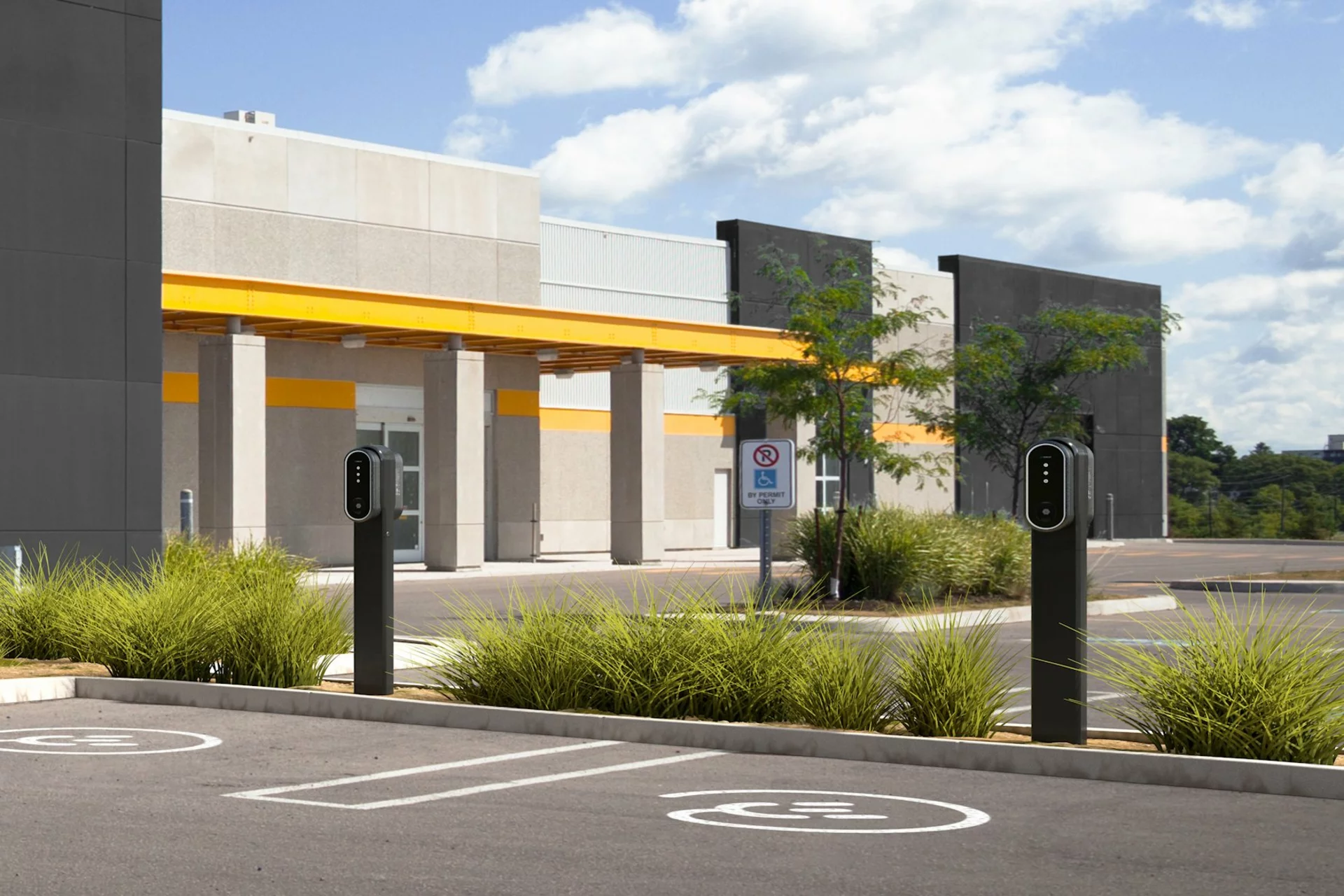

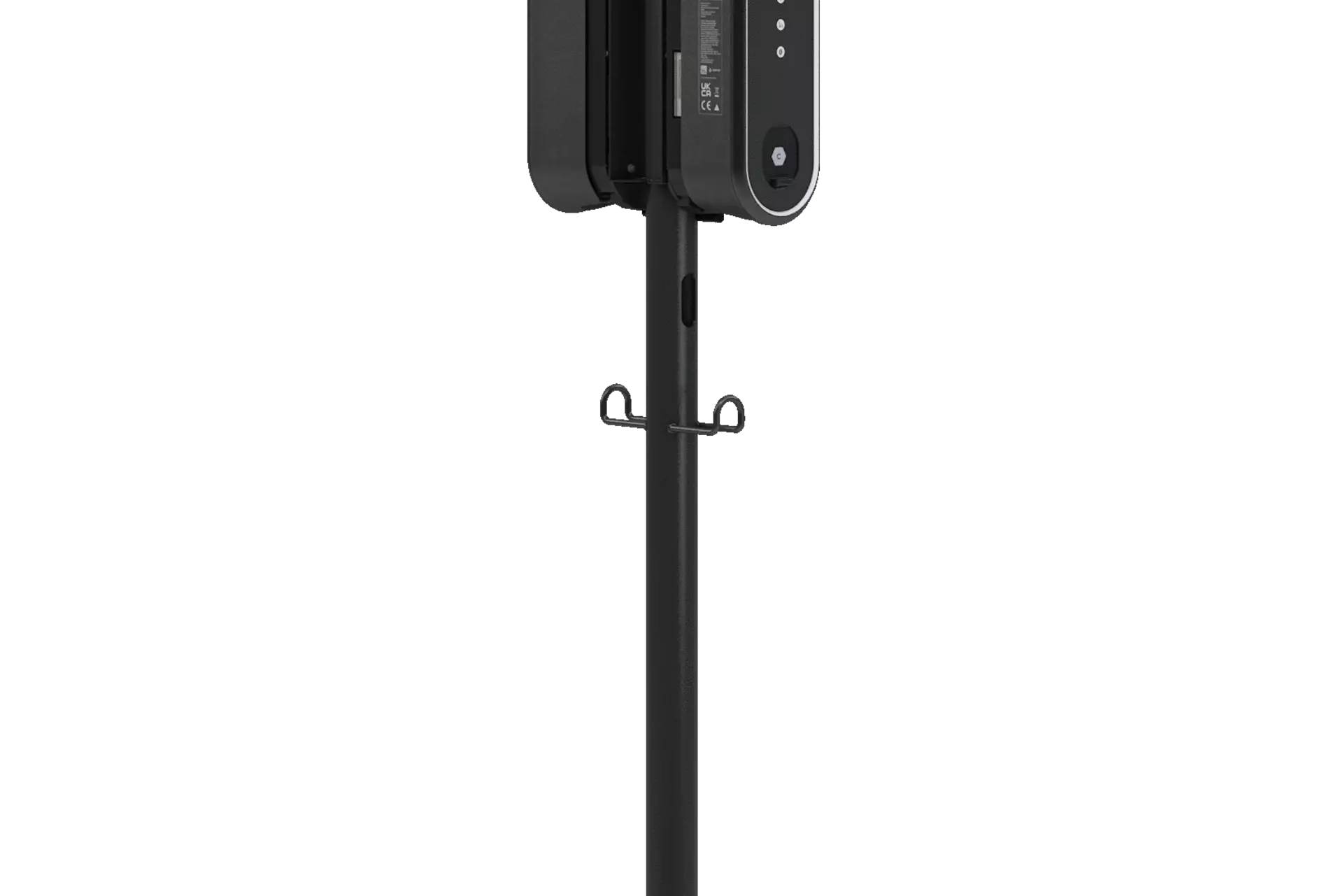

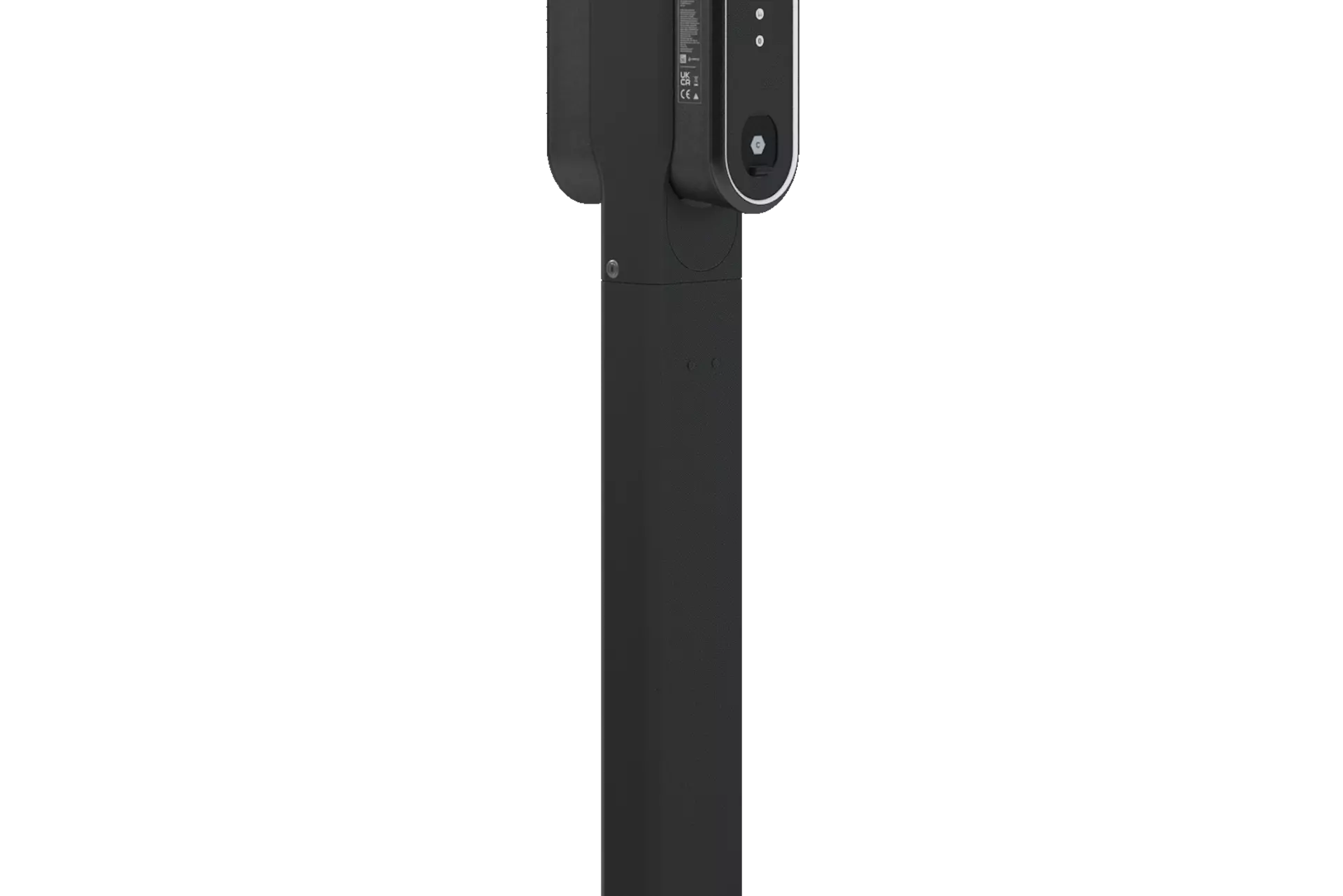

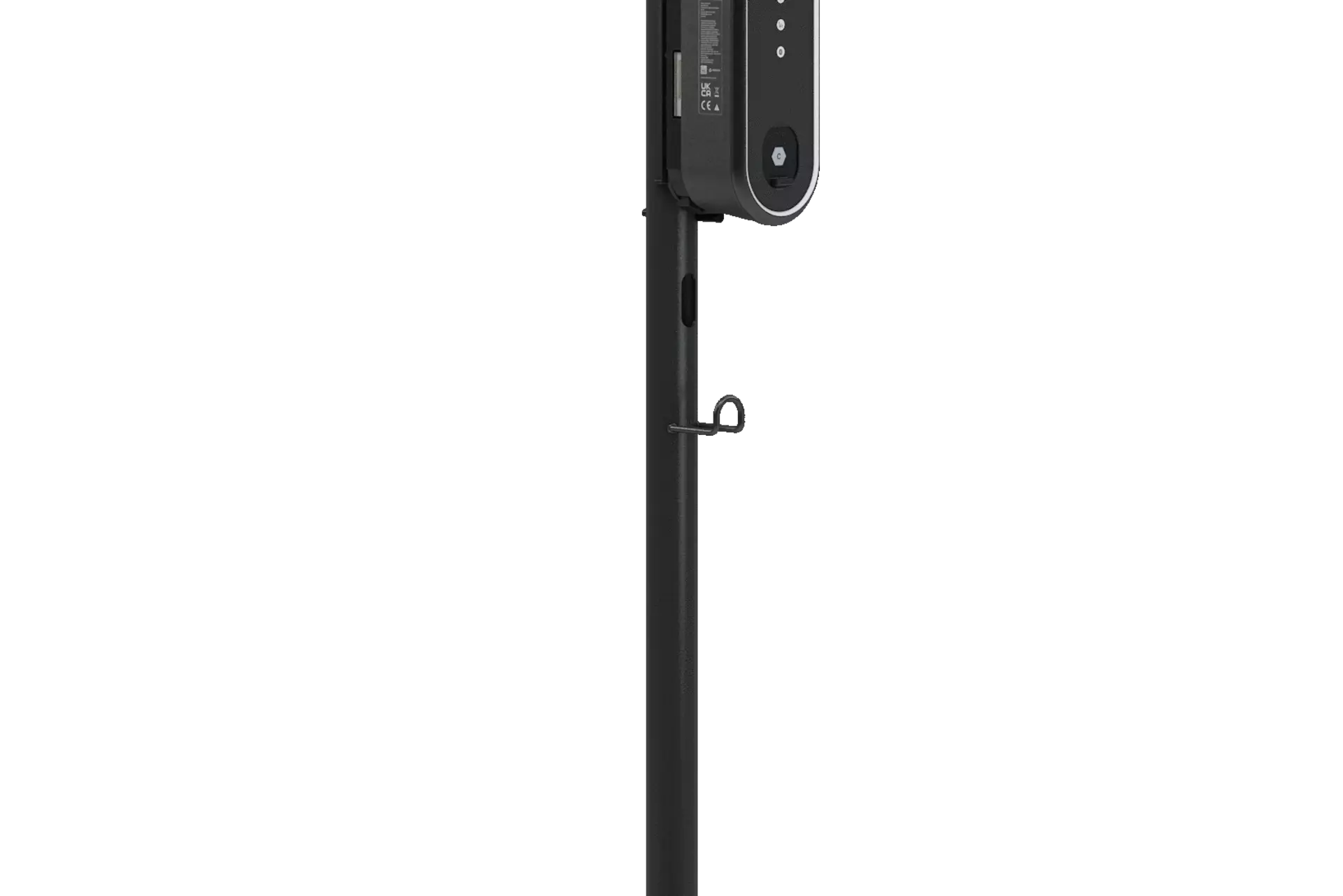

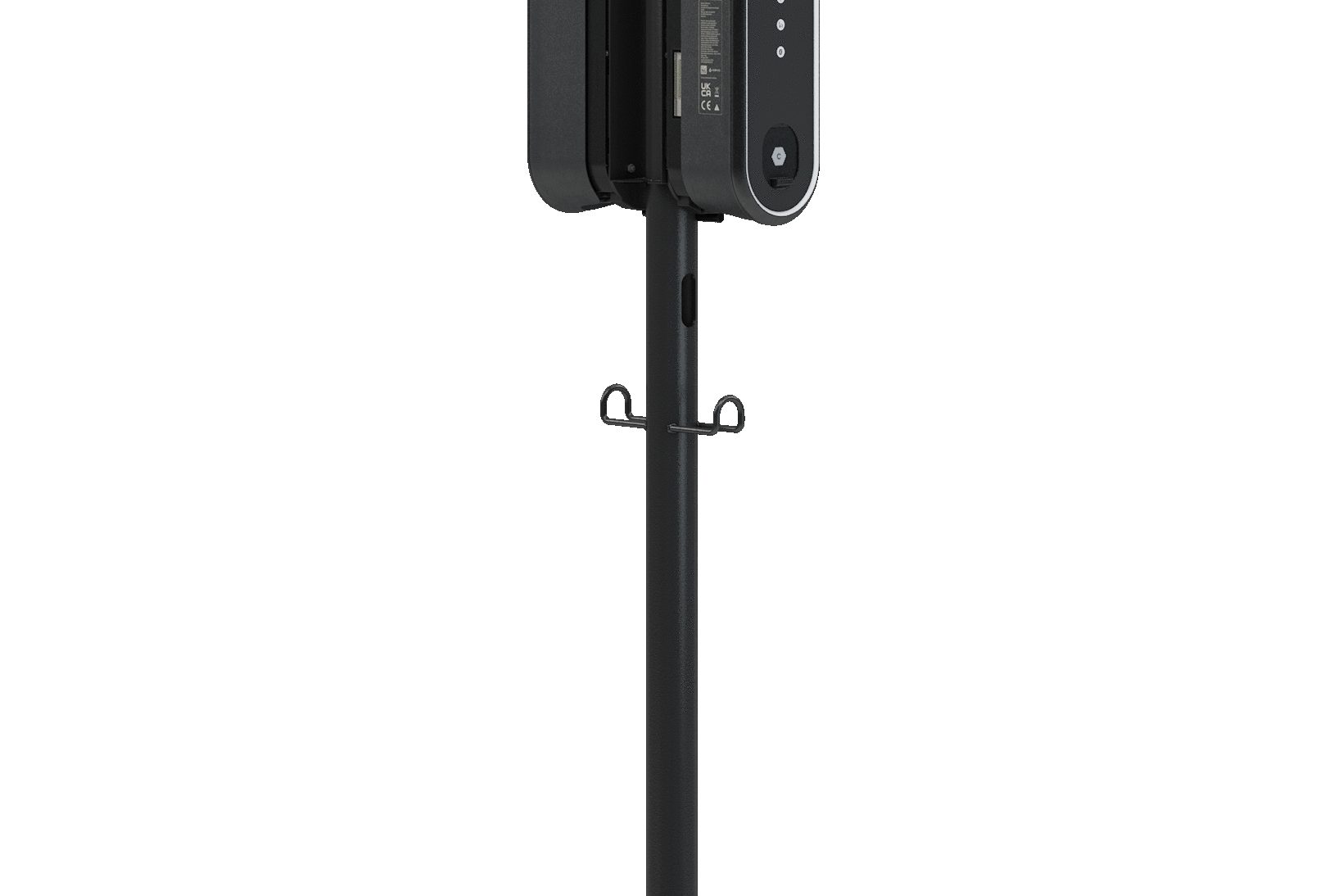

optional: Base mounted (bm)
Enclosure material
Copolymer
Weight
Approx. 3.1 - 6.4 kg, depending on added options
Lock
Optional locking cylinder
Environmental operating temperature
-30 °C to +50 °C
Approvals
CE, UKCA, RoHS, REACH, GPSD, WEEE
Standards
DIN IEC 61851-21-2:2018;
DIN IEC 62262:2002;
DIN EN 62196-2;
DIN IEC 61851-1 Ed.3/EN 61851-1 (2017)
Dimensions (HxWxD)
Wall mounted version: 450 x 180 x 170 mm (incl. eCLICK)
